Single phase transformers with terninals for various input and output voltages are widely used in electronics, control circuits in industrial automation (PLCs, motors), HVAC (thermostats, fans), lighting, and building systems.

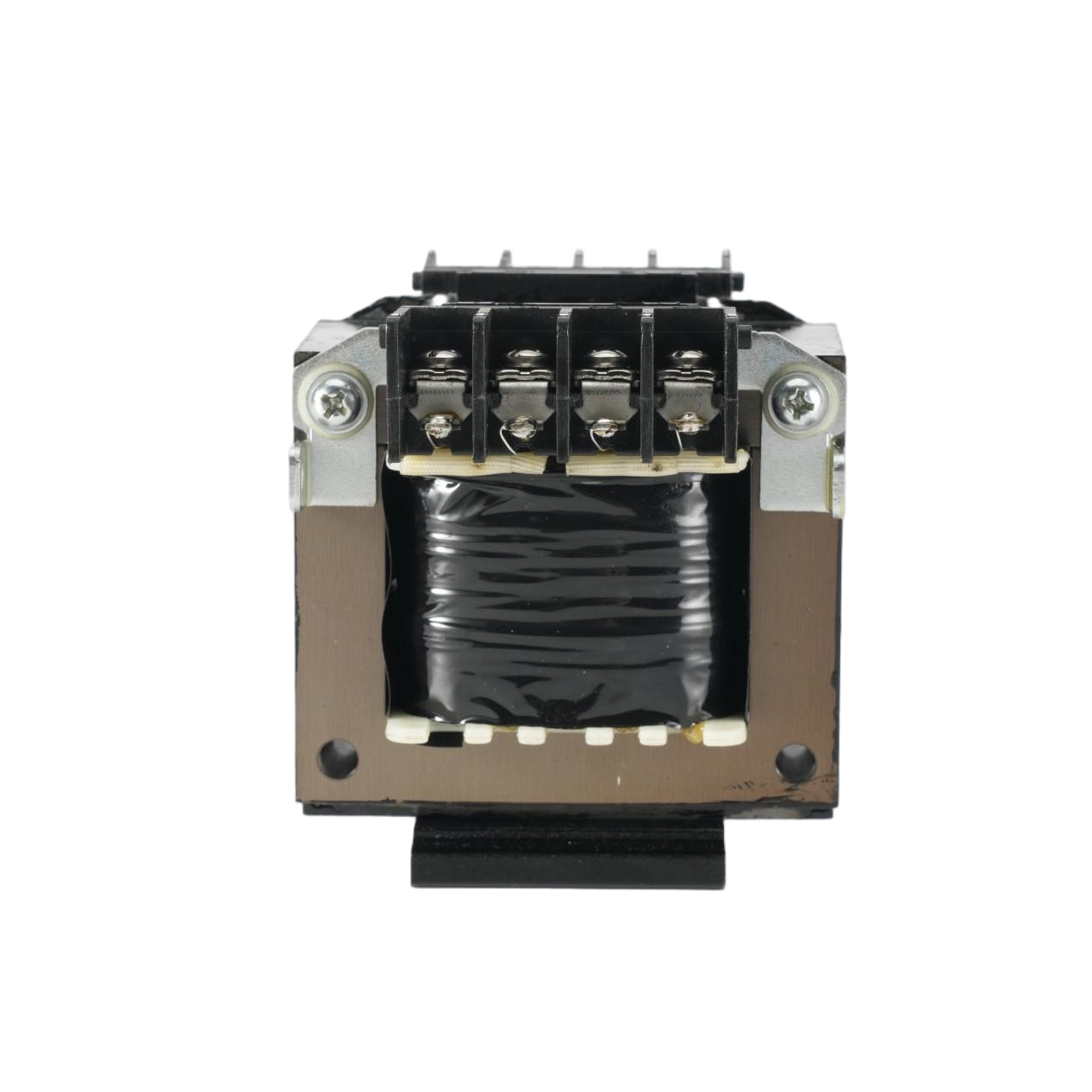

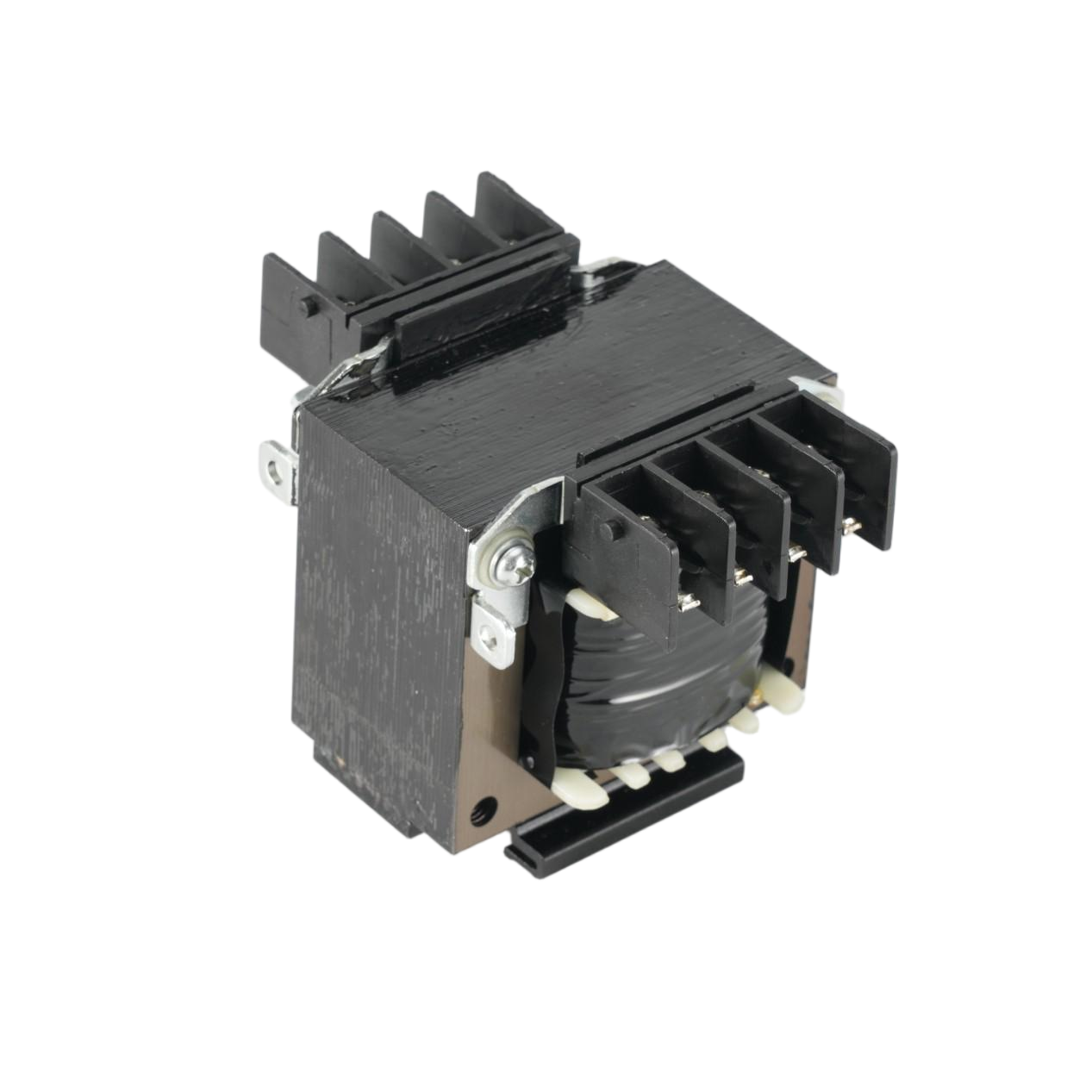

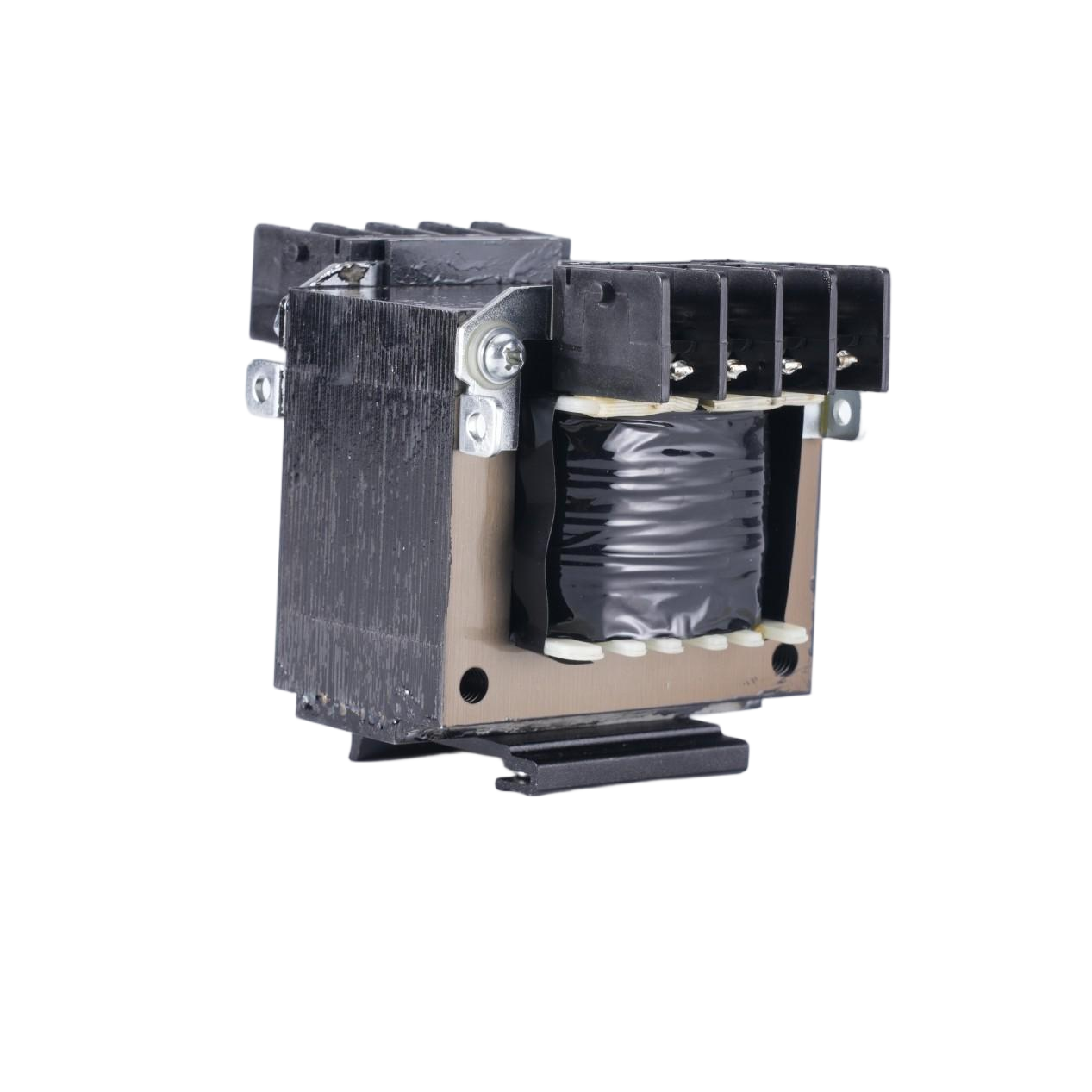

- Terminal Block: Finger-safe terminal blocks with isolation barriers to prevent arc over (configurable to accommodate various wire gauges), for easy installation with ring terminals.
- Insulation Class: Class B and F

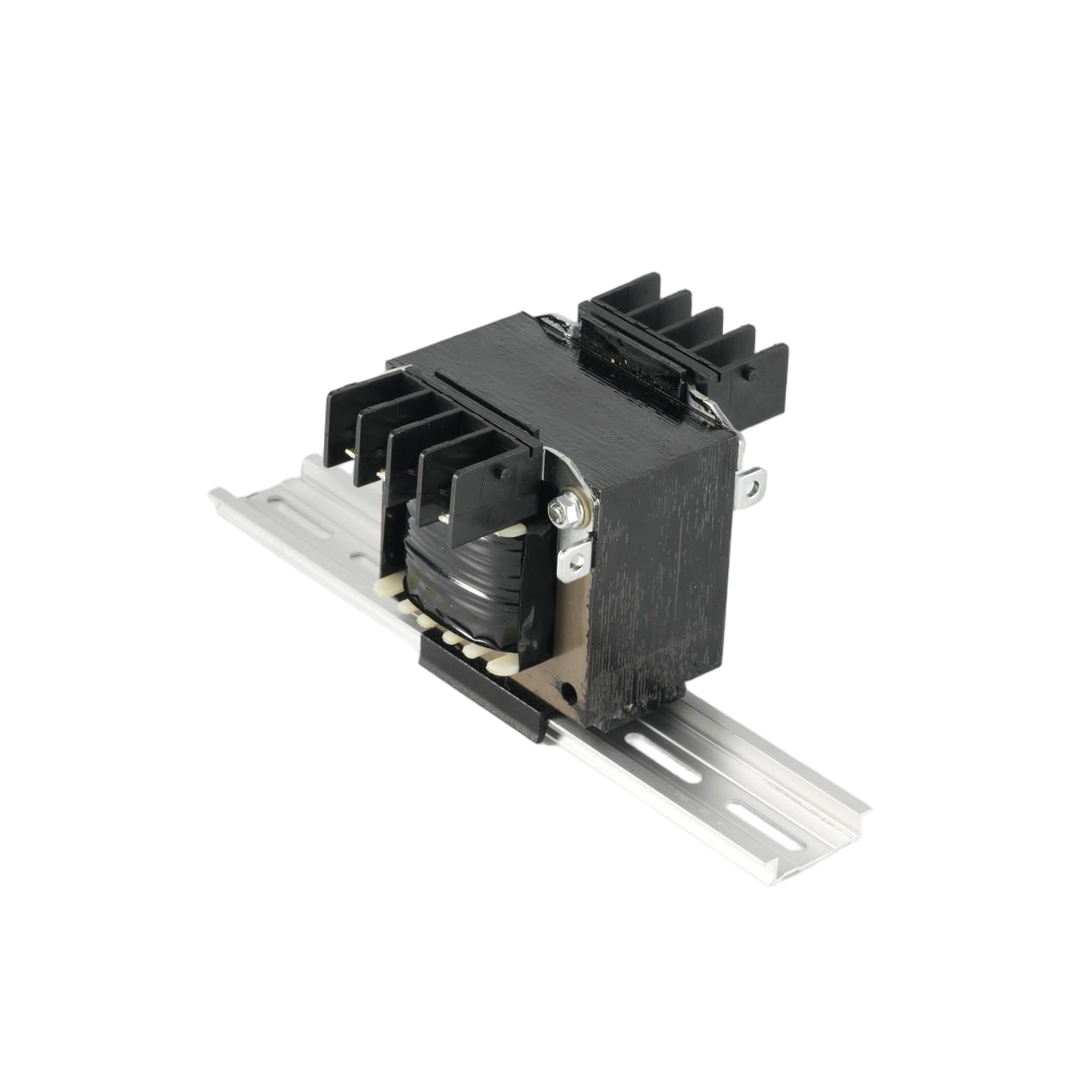

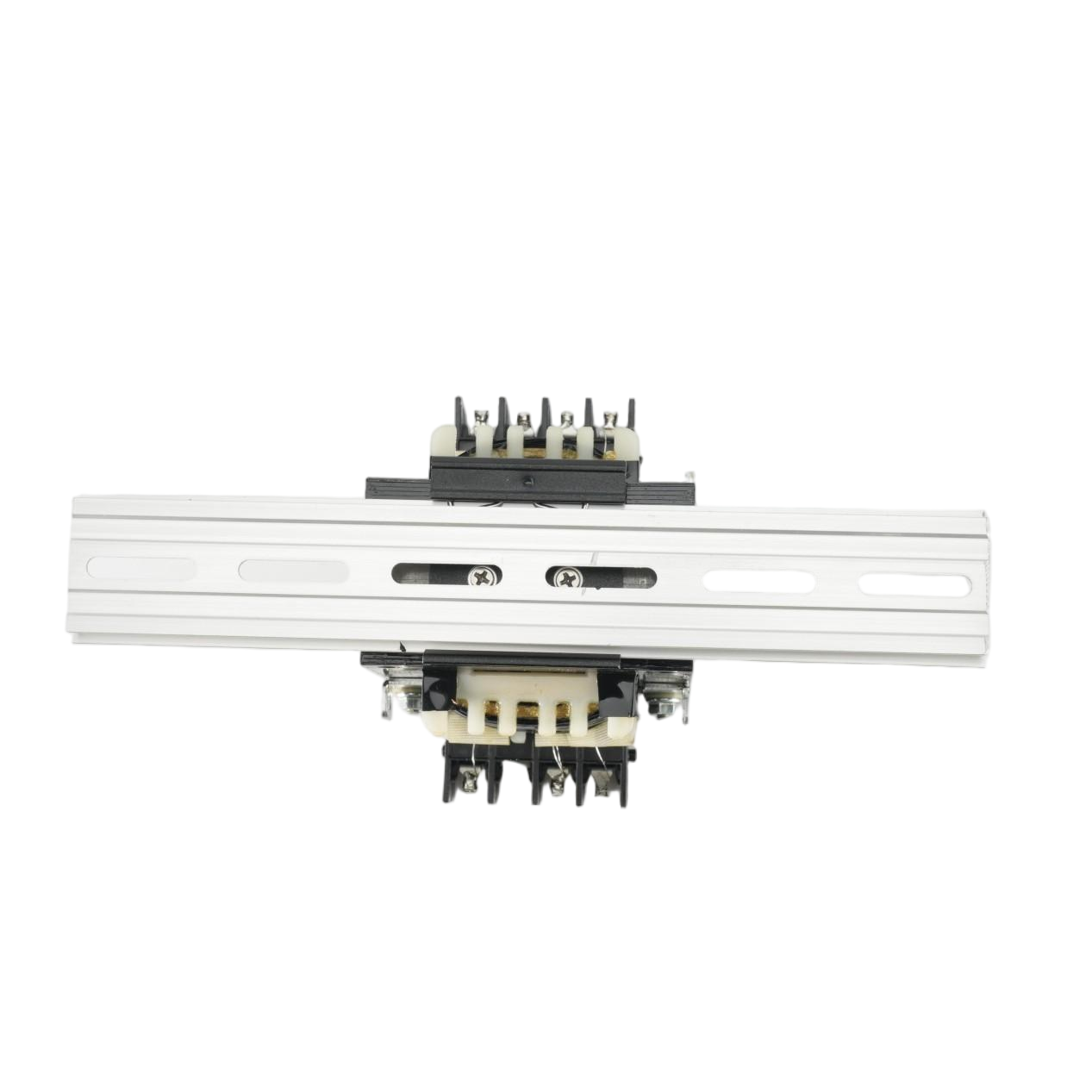

- Mounting: Mounted on a din rail (din rail standard: 35mm wide x 7.5mm height)
- Primary rating range: 100V-690VAC, 50/60Hz
- Secondary rating range: 5V-277VAC
- Capacity range: 25VA TO 300VAC
- Certification: ETL (UL5808 & CSA C22.2#66.1), CE(EN61558-2-4)
- Support multiple input or output voltages.
- Varnish impregnated
- 100% full testing before shipping
