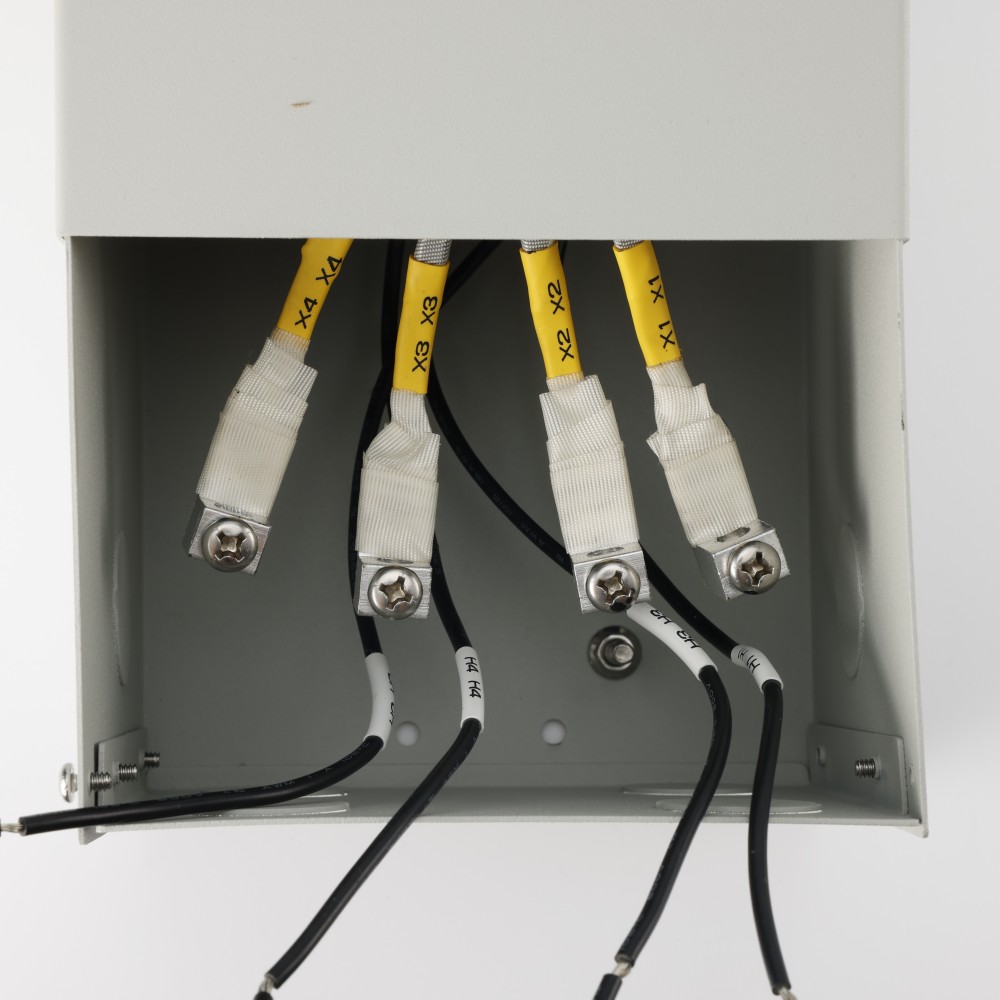

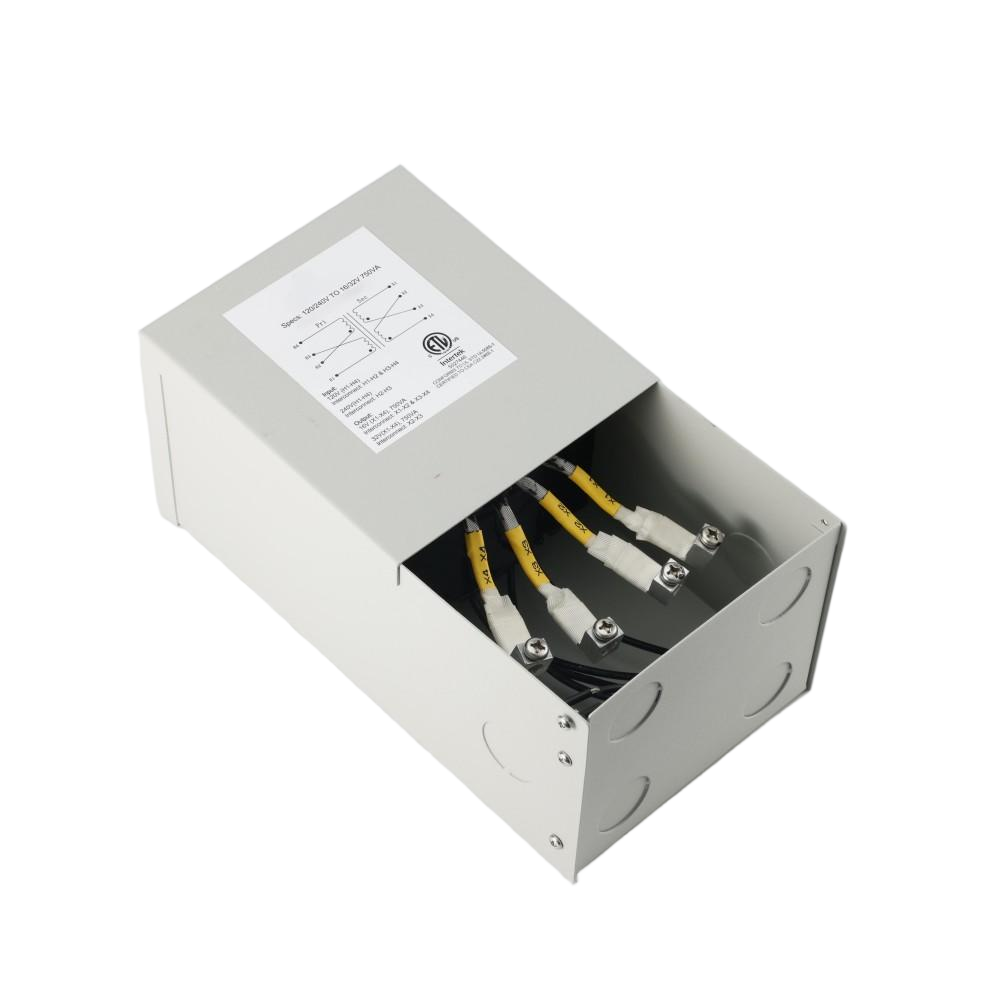

Installation: Integrated Junction Box with Multiple Knock-Outs for Easy Installation

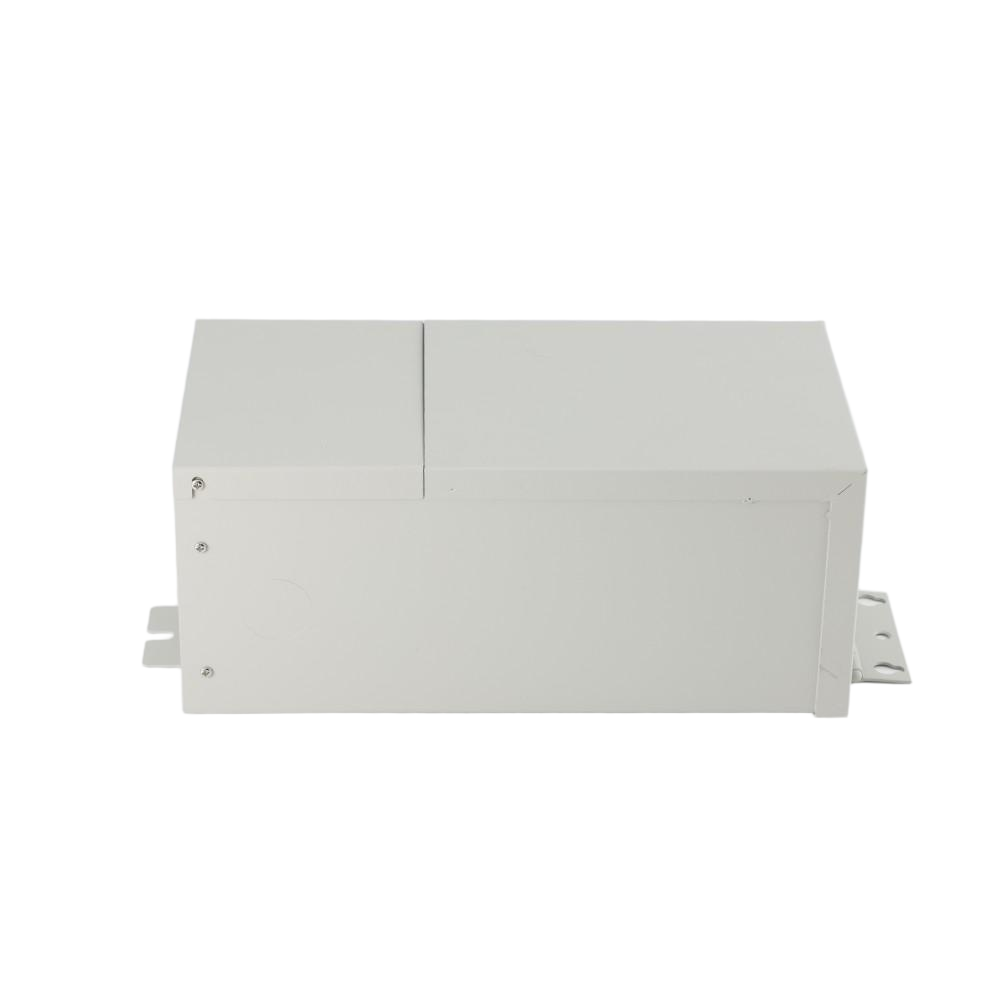

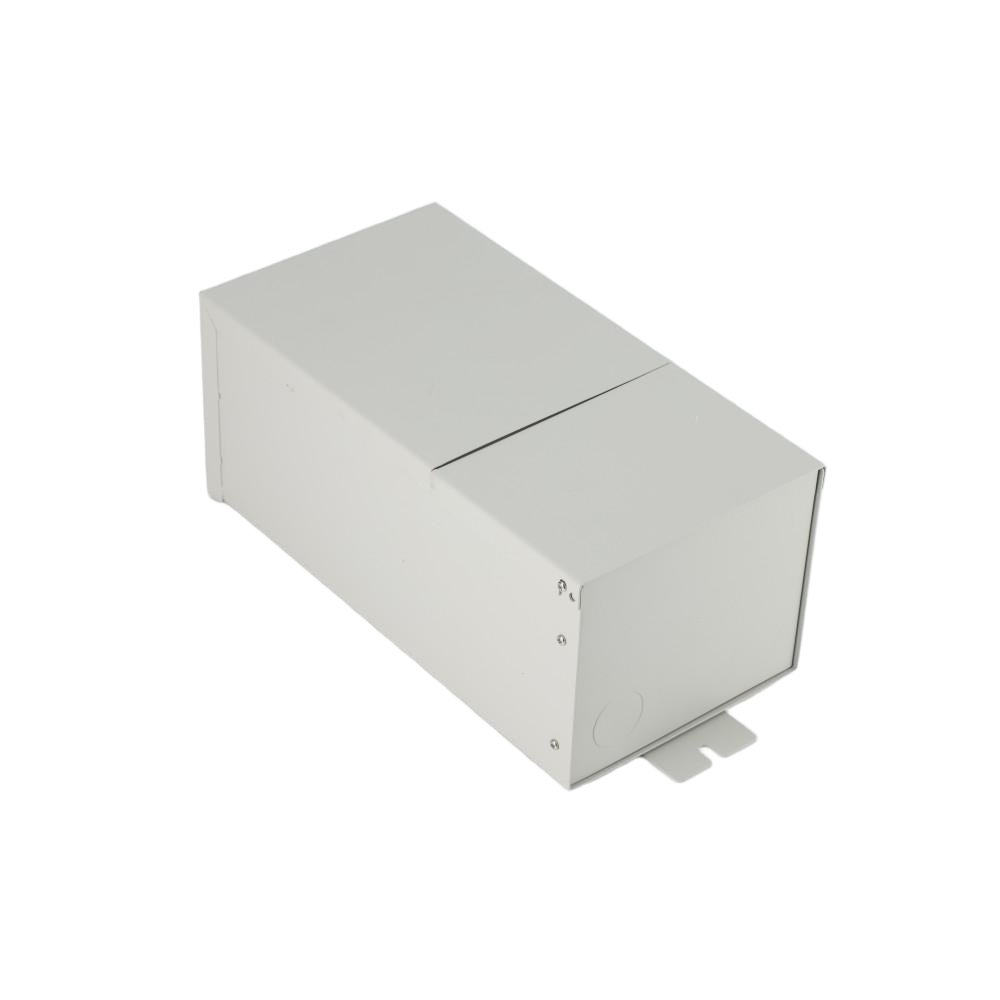

Housing: Gray powder-coated metal NEMA 3R Enclosure, with the mounting tab at the top and at the bottom.
Transformer: encapsulated EI core
Insulation Class: Class F (155°C) for copper winding and Class H (180°C) for aluminum winding.
Temperature rise: 80℃ for 150VA TO 500VA, 115℃ for 750VA TO 3KVA
Voltage combinations: 120x240V to 12/24V, 120/240V to 16/32V, 120x240V to 24/48V, 120x240V to 36/72V 240x480V to 12/24V, 240x480V to 16/32V, 240x480V to 24/48V, 240x480V to 36/72V
Input voltage availble: 100/110/120/208/200/220/230/240/277/347/380/400/415/416/440/460/480/550/575/600/690V
Output voltage available: 12, 24, 16, 25, 28, 32, 36, 48, 72, 95, 115, 120, 230, 240V
Wattage available: 150VA to 3KVA
Winding Materials: Copper or aluminum
Phase: Single Phase
