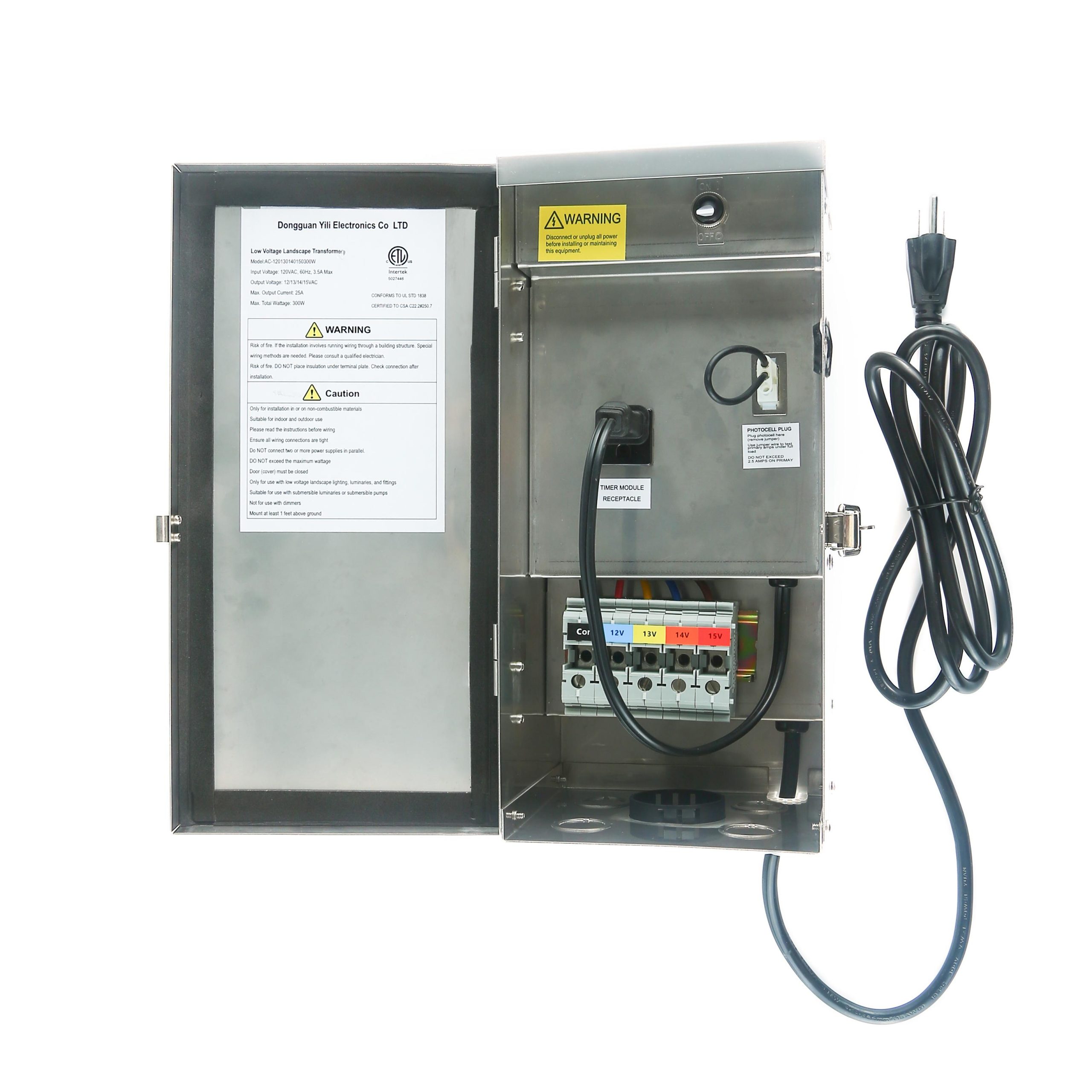

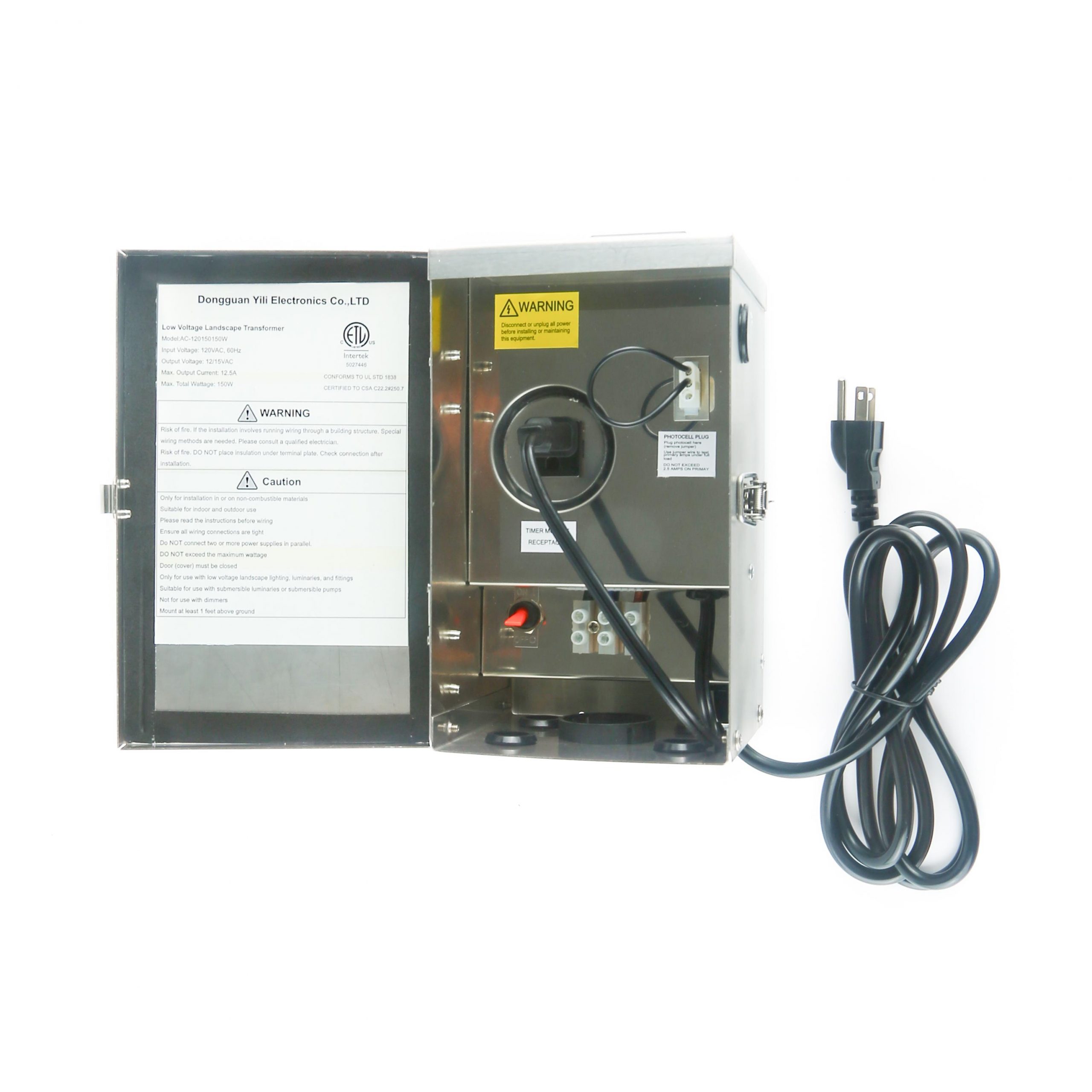

Landscape Transformers supply low-voltage 12/13/14/15V power to low-voltage landscape lighting, path lights, outdoor lighting, garden lighting, lawn lighting as well as submersible lighting fixtures in residential and commercial applications.

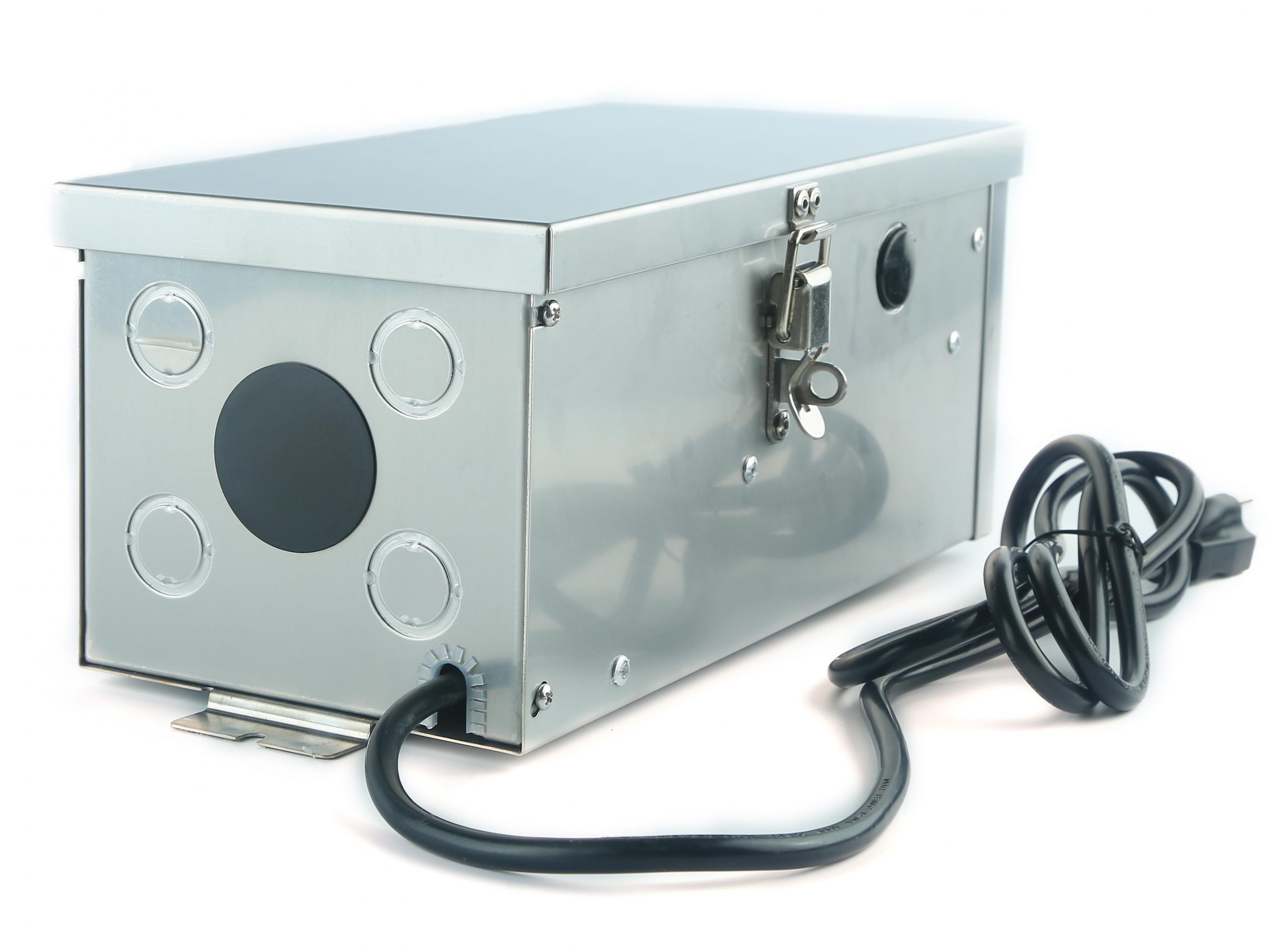

- Mounting: wall or stanchion mount, using the mounting tab at the top
- Installation: wiring compartment with multiple pre-punched knockouts with replaceable rubber cover for cable connections
- Transformer: built-in encapsulated toroidal core
- Input leads: 180cm water-resistant power cable cord and plug
- Output leads: terminal block with lugs for low-voltage cable connections
- Protection: Equipped with circuit breakers and thermal switch
- Housing: 304 Stainless Steel Enclosure with sealers against water, dust, and pest intrusion. Comes with a removable & lockable hinged door and bottom panel
- IP Ratings: with door gasket, IP65 protected against dust and water jet spray

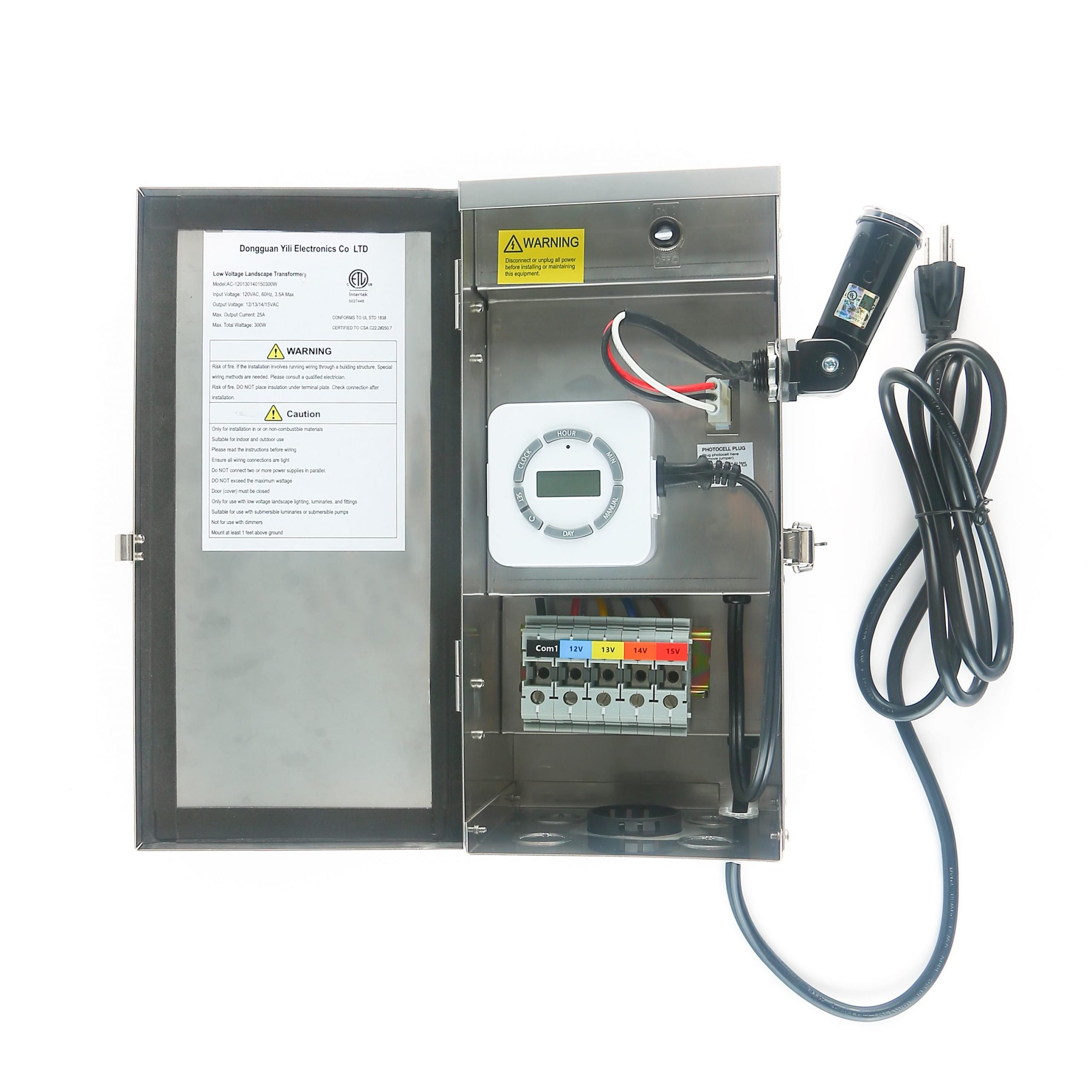

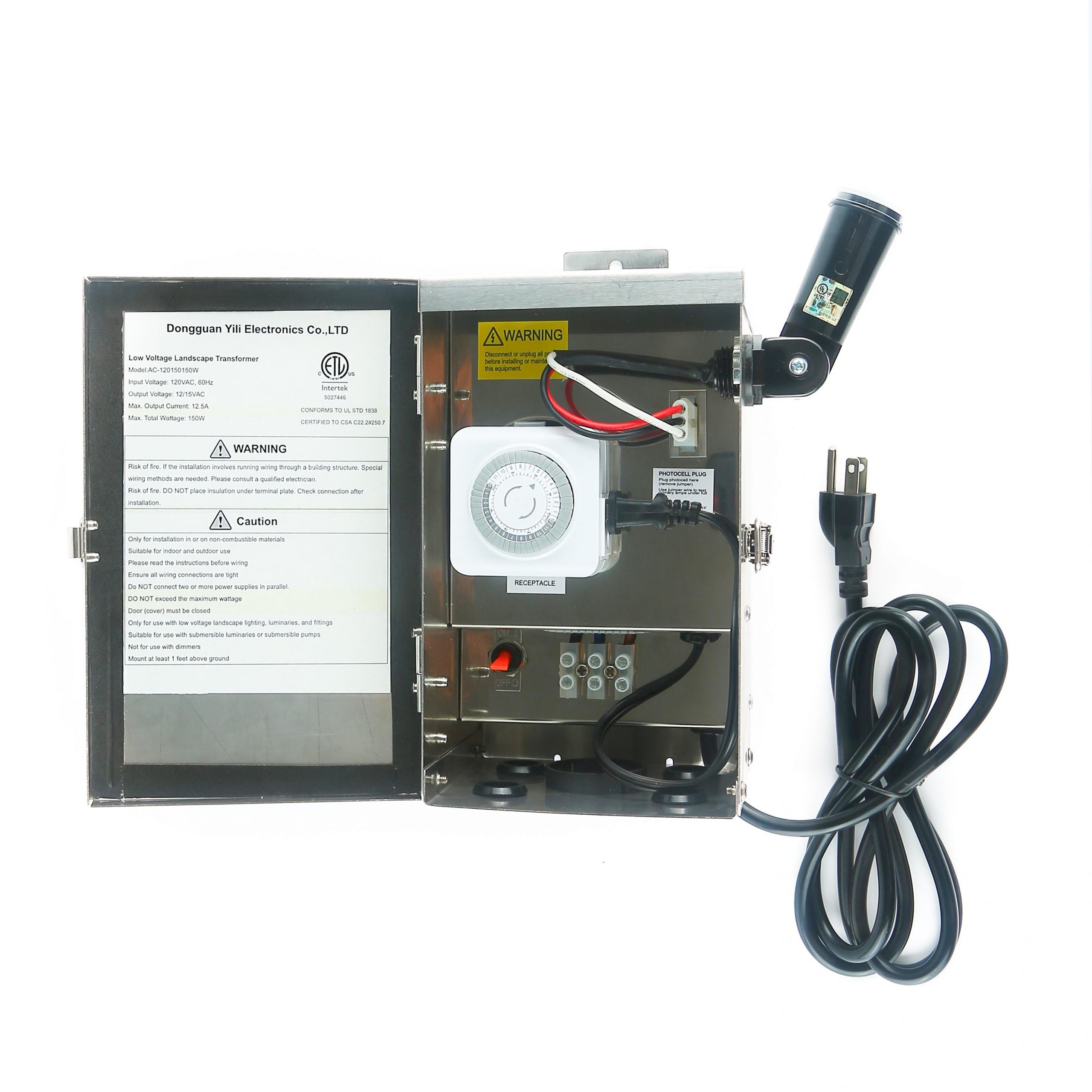

- Optional: Timer, wireless controls or photocell light sensor could be installed
- Certification: ETL Listed to US (UL1838) and Canada (CSA C22.2#250.7) Safety Standard
- Warranty: 5-year warranty
- Working Environment: indoor and outdoor
- Thermal Class : 130ºC, Class B
- Operating Temp.: -20ºC to 70ºC
- Input: 120VAC, 50/60Hz
- Output: 12-13-14-15VAC
- Wattages: 75W, 150W, 300W
