Smart Landscape Transformers supply low-voltage 12/15V power to low-voltage landscape lighting, outdoor lighting, garden lighting as well as submersible light fixtures in residential and commercial applications. The buil-in timer and photocell light sensor can be controlled remotely on your Tuya App. Each zone could be controlled remotely and independently on your Tuya App

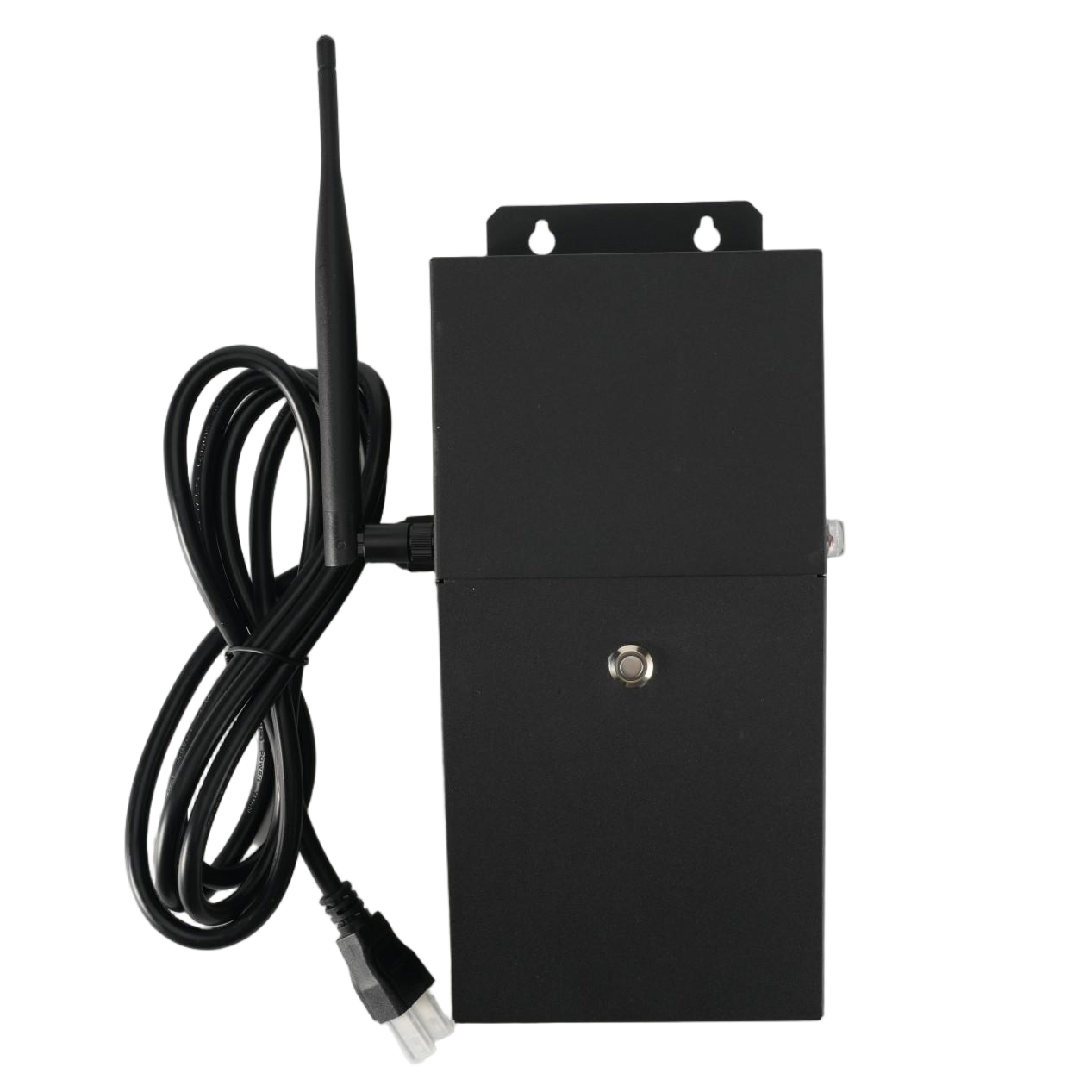

- Mounting: wall or stanchion mount, using mounting tab at the top.
- Installation: Wiring compartment with multiple pre-punched knockouts cable for connections (strain reliefs included)
- Transformer: built-in encapsulated EI Transformer
- Input leads: 170cm water-resistant power cable cord and plug

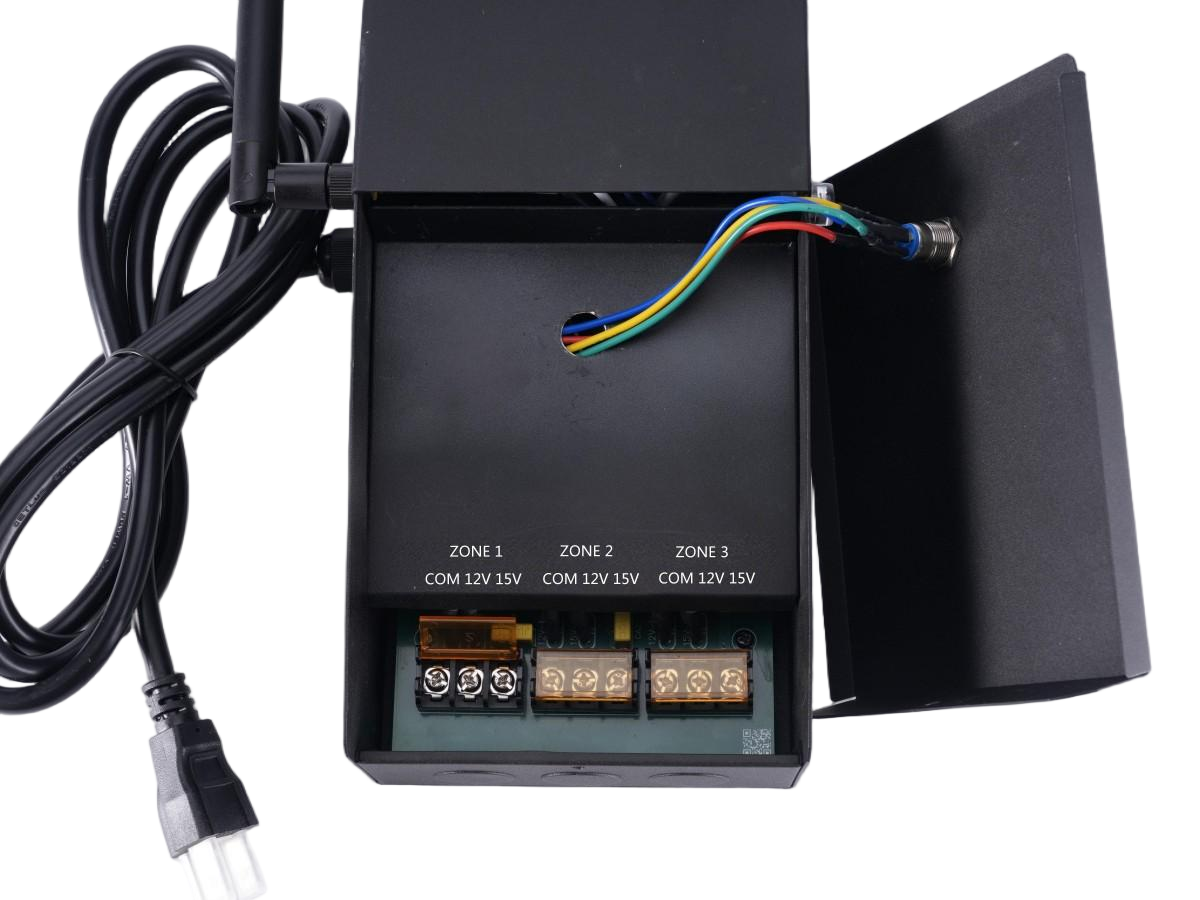

- Output leads: terminal block with lugs for low voltage cable connections
- Protection: Equipped with circuit breakers and thermal switch
- Housing: Black powder-coated metal NEMA 3R enclosure, with sealers against water, dust and pest intrusion
- IP Rating: With door gasket, P65 protected against dust and water jet spray
- Thermal Class: 130℃, Class B
- Operating Temp.: -40℃ to 70℃
- Input: 120VAC, 50/60Hz
- Output: 12-15VAC
- Wattages: 100W, 200W, 300W
- Efficiency: 80%
- Zones: 1 zone, 2 zones and 3 zones, as per your needs. Each zone could be controlled remotely and independently on your Tuya App
- ETL Approved: ETL Listed to US (UL1838) and Canada (CSA C22.2#250.7) Safety Standard
